Fully Automated Gabion Box Machine Production Line for River Revetment & Slope Protection

Name: Fully Automated Gabion Box Machine Production Line for River Revetment amp Slope Protection
Brand: SUNRICH
Price: 35000 USD

Wholesale Fully Automated Gabion Box Machine Production Line for River Revetment & Slope Protection from china suppliers

Brand Name : SUNRICH

Model Number : SRC-110-2

Certification : CE

Place of Origin : CHINA

MOQ : 1 SET

Price : usd35000-usd48000

Supply Ability : 10 SETS/MONTH

Delivery Time : 35 WORKING DAYS

Packaging Details : NUDE PACKING

Weaving Width : 4500mm

Dimension : 7200x1400x2400mm

Model : SRC-110-2

System : automatic PLC system with servo motor

Color : Grey

Product Type : Gabion Machine

Production Speed : 30-50m/min

Structure : heavy duty

Zinc Coating : 220-280g/m2

Mesh Hole : 110mm × 130 mm

Working Width : 4500mm

Application : Gabion box&Gabion Mattress&Gabion Cage

Contact Now

1. Product Overview

Gabion Machine is an automated weaving equipment designed to produce gabion boxes, mattresses, and cages from galvanized or PVC-coated steel wires. These structures are widely used in below items:

Erosion control (riverbanks, coastlines)
Retaining walls (highways, railways)
Flood defense (emergency barriers)
Architectural landscaping (decorative structures)

2. Gabion Mesh Specifications

Parameter	Standard Range	Custom Options
Mesh Type	Hexagonal woven	Double-twist, PVC-coated
Wire Diameter	2.0mm–4.0mm (galvanized)	Up to 5.0mm (Zn-5%Al alloy)
Mesh Size	60x80mm, 80x100mm, 100x120mm	Any size (CAD-designed)
Cage Dimensions	1m×1m×1m to 3m×1m×1m	Foldable/Modular designs
Filler Material	Rocks, recycled concrete	Geotextile-lined variants

3. Gabion Machine Product Models & Specifications

Model	Mesh Size	Wire Diameter	Mesh Size (m)	Speed(m/h)
SRC-60-2	60x80mm	2.0–3.0 mm	2m-5m	180m/h
SRC-80-2	80x100mm	2.0–3.5 mm	2m-5m	220m/h
SRC-100-2	100x120mm	2.0–4.0 mm	2m-5m	250m/h

4. Set of gabion mesh production line including

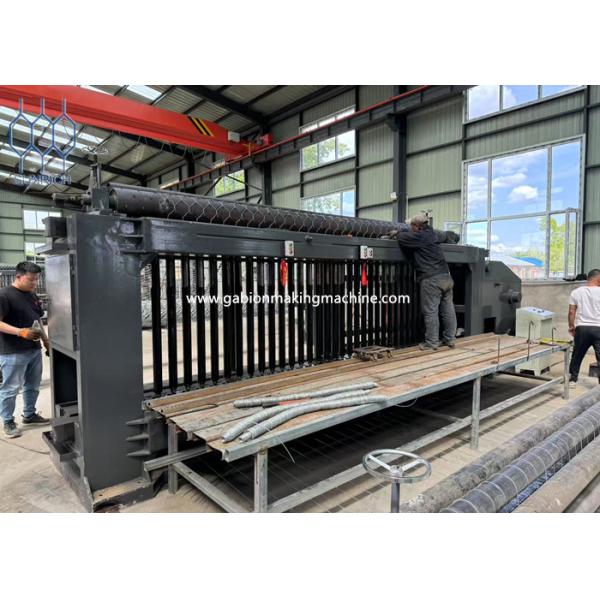

Gabion mesh weaving machine

Fully Automated Gabion Box Machine Production Line for River Revetment & Slope Protection

Wire tension roller

Fully Automated Gabion Box Machine Production Line for River Revetment & Slope Protection

Spring coiling machine

Fully Automated Gabion Box Machine Production Line for River Revetment & Slope Protection

Netting winding machine

Fully Automated Gabion Box Machine Production Line for River Revetment & Slope Protection

5. Equipment Advantages

High Efficiency: Produces 500–700 cages/day (vs. 100–150 manually).
Material Savings: AI-driven tension control reduces wire waste by 15%.
Energy Smart: Solar/hybrid power compatibility (30% lower CO2).
Multi-Function: Some models integrate filling & stitching.

6. Gabion Mesh Production Line Machinery List

Equipment	Function	Key Specifications	Application
Double-Twist Weaving Machine	Automatically weaves hexagonal mesh (enhanced strength).	- Mesh size: 60×80mm to 100×120mm (adjustable) - Output: 00–1200㎡/shift (8hrs)	Standard gabion production
Automatic Straightening & Cutting Machine	Straightening and Cut gabion mesh sheet accordingly	- Cutting precision: ±2mm - Speed: 30 times/min - Power: 380V/50Hz	Gabion Box /retaining walls
Edge winding machine	Edge mesh sheet both sides	- Mesh size: 60×80mm to 100×120mm (adjustable) - Speed: 3-4pieces/min - Width: 1-4m	Gabion Box /retaining walls
Gabion Packing machine	Press gabion box	- Packing size: 2x1x1mm or 3x1x1m - Press: 60t - Power: 380V/50Hz	Gabion Box /retaining walls
Iron Wire Straightening and cutting machine	Side wire straightening and cutting	- Cutting width: 5m - Max Wire diameter: 5mm	Gabion Box /retaining walls

7. Export Markets & Certifications

Asia: India, Vietnam, Philippines, Nepal, Thailand, Indonesia
Europe: Poland, Spain, Italy, UK (for EU-standard CE-certified models)
Africa: South Africa, Algeria, Tunisia
Americas: Brazil, Mexico

8. After-Sales Service

Global technicians dispatched within 72 hours.
Free training videos and remote diagnostics.
Warranty Period: 12-month warranty, spare parts supply.

Fully Automated Gabion Box Machine Production Line for River Revetment & Slope Protection Images
